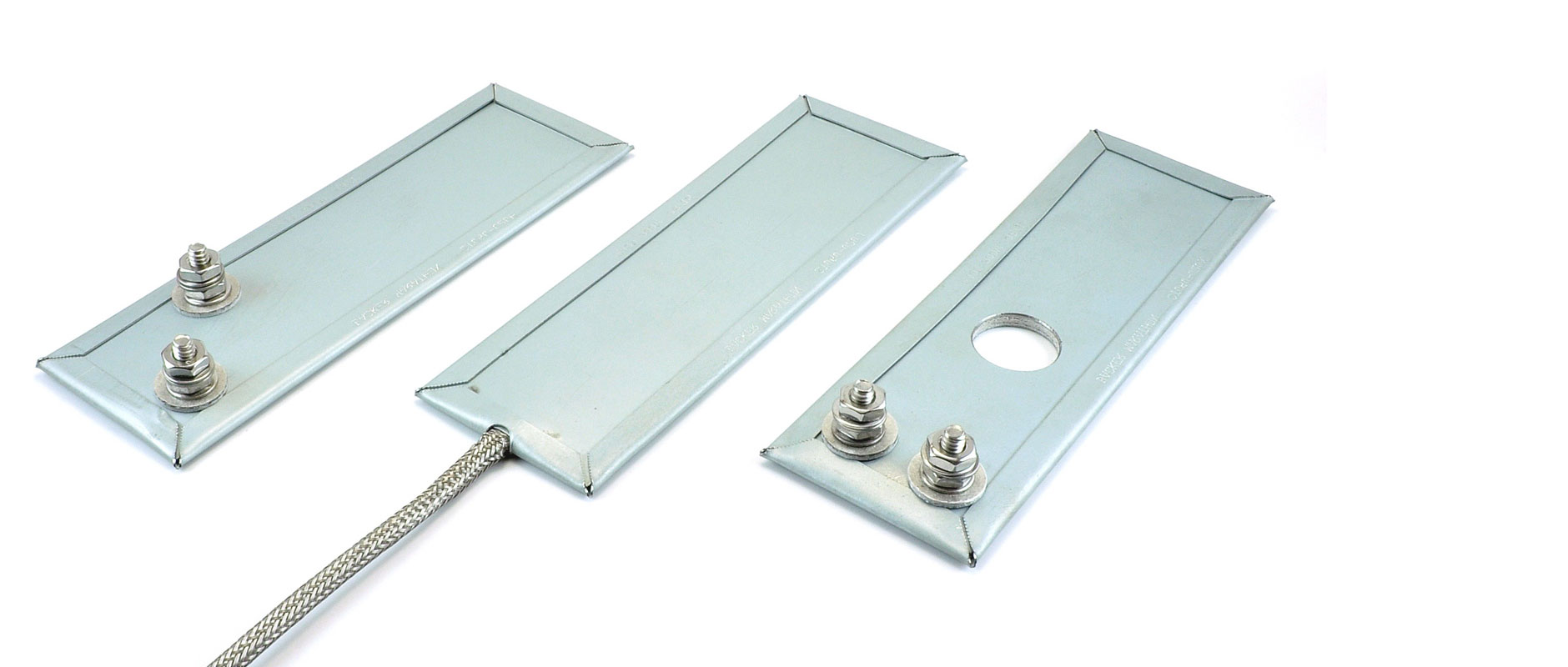

Strip Heaters basically has two categories – One is Mica Base Strip Heater and the other is Ceramic Base Strip Heater. Ceramic Strip Heaters are mostly used in Industries where it is made of helical wound resistance coil evenly stretched and strung through series of ceramic insulators. Resistance coil is mechanically connected to screw terminals or lead wires for positive connection. The element assembly is electrically insulated and is covered by metal sheathing. Strip Heater can be clamped or bolted onto the objects or solid surface contact heating over large areas and are primarily used in indoor applications.

We are the leading Manufacturer to offer the best quality of Strip Heaters to our esteem clients. Our heaters are widely appreciated in the industries for its high performance, easy installation and durability. These Strip Heaters are manufactured by experienced professionals. If it is used as a radiant heater, we suggest to have fins to maximize its surface area and heat transfer to the air(Link to air-heater). Our Strip Heaters are the best versatile choice to provide good surface contact heating over large areas. A fairly inexpensive way of heating surfaces or small areas, Strip Heater is an excellent solution to meet any budget.

    Heating Surface Material we offers
    Galvanized Iron (GI) SS 202 SS-304 SS-316

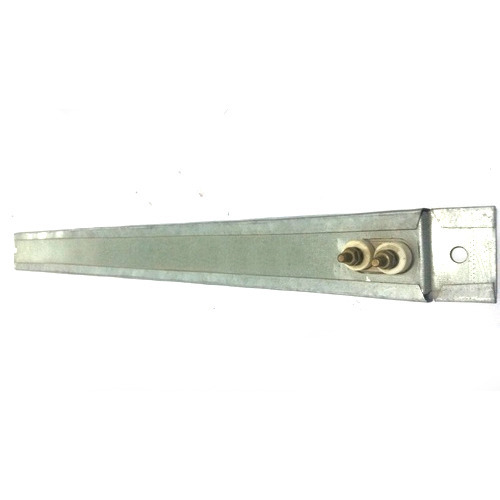

  • Ceramic Type Strip Heater

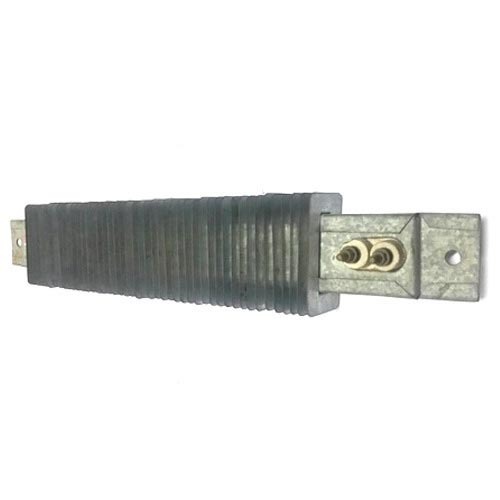

    • With Fins

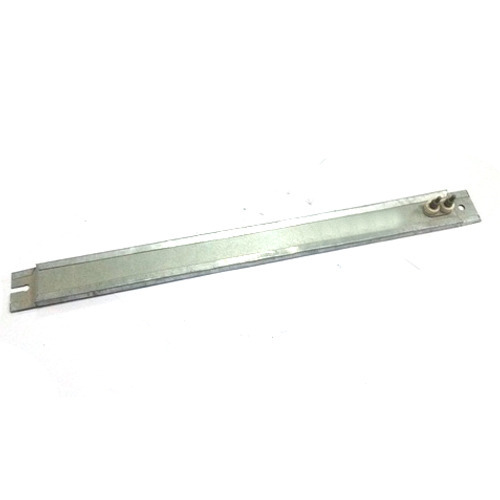

    • Without Fins

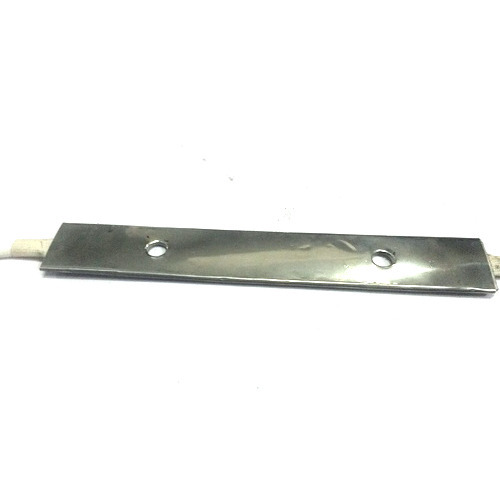

  • Mica Type Strip Heater
  • Length Range: 200 mm to 1200 mm
  • Terminal /Junction Box (for critical and special case)
  • Compatible to work on : 1 phase / 2 phase / 3 phase star / 3 phase delta
  • Available Mounting Arrangement of Strip Heaters:-
    • Mounting tabs with holes
    • Mounting tabs with slots
    • Slots or holes without tabs
  • Designed with Excellent Quality Materials (high temperature alloy resistance wire)
  • Uniform Heat Distribution
  • Corrosion resistant and attractive (with Aluminized Steel Strip Heaters and a Stainless Steel sheath)
  • Special sizes, wattages, and materials available upon request
  • Custom-designed to meet your specifications
  • High Voltage Strength : 1000 V- AC
  • Insulation Resistance: 5 MΩ
  • Current Leakage: ≤ 0.5mA
  • Surface heating
    • Dies
    • Molds
    • Tanks
  • Process air heating:-
    • Ovens
    • Drying Cabinets
    • Baking Ovens
    • Vacuum Dehydrating Ovens
    • Moisture protection for motors
  • Dropping resistors:-
    • Line applications in railroads and load banks
  • Winterizing:-
    • Hoppers
    • Conveyors
    • Ducts
    • Car Heating Systems
    • Thawing
    • Control Panels
  • Dehumidifier
  • Space Heating
  • Packaging and Sealing Equipment
  • Food Warming Equipment
  • Vulcanizing Presses
  • Drying Equipment
  • Laboratory Equipment
  • Air Conditioning(HVAC)
  • Type of Strip Heater
    • Ceramic Strip type
    • Mica Strip type
  • Heating Capacity: KW
  • Operating Voltages: 1 phase / 2 phase / 3 phase star / 3 phase delta
  • Width
  • Length
  • Material of Heater casing/cover
    • GI (Galvanized Iron)
    • SS 202
    • SS 304
    • SS316
  • Terminal Types
    • Brass
    • SS304 / SS316
  • Fins (optional feature)
  • Clamping Hole/Slots
